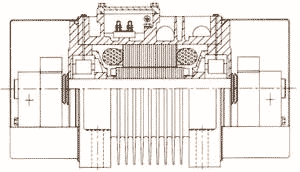

Features of 'Sinex' Unbalance Weight Motor Vibrators :
Sinex Primemovers offer based on their decade
long experience, of totally indigenous development and manufacture of
Unbalance Weight motor Vibrators, its new range packed with features simply
unrivaled by any.
Optimized design for efficient and fullest conversion of rated
electrical in put into vibration power
Increased centrifugal force values and greater spread all across the
High ratio of centrifugal force to machine weight, a feature of great
value for mechanical stability of driven machinery.
High ratio of force to overall size representing most compact design
Path breaking finned construction for highly enhanced heat dissipation,
to the extent of 1000 %, giving Sinex motor vibrators
an unmatched electrical overload capacity.
Thoroughly done product design for low cost manufacturing benefits of
which being passed on to customers, making Sinex
most competitive amongst motor vibrators of ' their class of
Sturdy yet light frame constructed in shock resistant ductile metals of
most appropriate grades duly heat treated and
seasoned for strength and geometrical stability.
Large holes for easy lifting, shifting and installation
Top mounted integrally cast terminal box with resin bonded connection
post for vibration proofness. Well gasketed sturdy
lid protects against dust, dirt, moisture and humidity.
Positively held into frame a vibration proof stator having deep
immersion / vacuum impregnated winding with minimum
class 'F' insulation materials to suit up to 60'C ambient.
Largest feasible shaft made out of appropriate grade alloy steel for
strength and minimum deflection.
Heavy duty bearings only of appropriate types for Iong life and
maintenance free working.
Innovative facility for bearing lubrication, scavenging used grease and
replenishing new, without shutdowns and machine
dismantling thereby resulting in easy and hence assured servicing
for enhanced bearing lives.
'V' seals on shaft extensions to protect bearings, over and above that
done by unbalance weight covers, in very highly dusty,
dirty and humid surroundings.
Reshaped unbalance weight for optimum usage of mass, incorporating
clamping arrangement for safety with easy adjustability.
Standard sheet metal covers for unbalance weights with tight and
positive rubber sealing rings on bearing housing for
IP 56 protection.
And Several Options Like :
Thermistors for size EMV-5 and above ;
Cast aluminium unbalance weight covers for IP 65 protection
Power supply 50 or 60 Hz, up to 650 V and 3 phase ;
Single phase up to size EMV-3 ;
Short time rated machines ;
Besides foot, other mounting styles - flange, wedge, oscillating base
Pole changing 2 speed vibrators.
